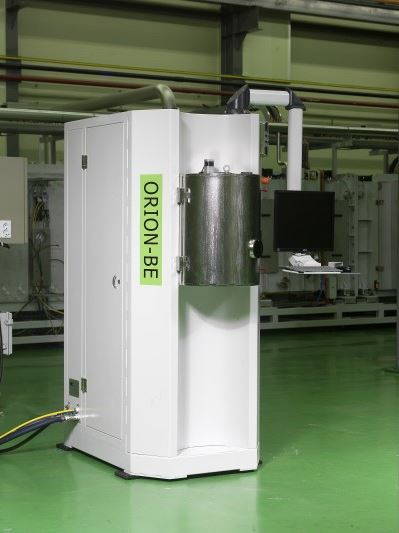

ORION-BE
Concept : Batch Type Vacuum Evaporation System
Batch Capacity : 6 lenses
Available Lens Size : Up to 80mm diameter
* Cut lens is available with Spring Ring
Process Time : Approx. 20mins, depends on process and conditions
Available Coating Process : Anti-Reflection, Anti-Static, Reflection(Mirror) and etc.
* hydro- and super hydro phobic top coat are available
- Hardware Specfication -
E-beam Evaporatin Source : 4 pockets of 2cc each
Ion Beam Source : End-hall type with hot cathode
Thermal Evaporation Source : Filament boat

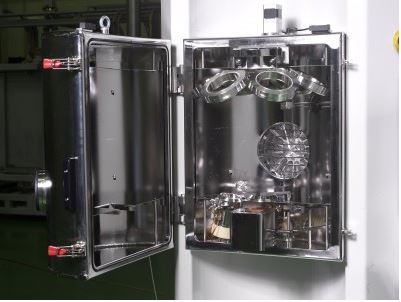

Lens Holder : Planetary rotation holder
Vacuum Pump : Turbo molecular pump with rotary vane pump
Thickness Monitoring : Quartz single sensor head
System Control : Fully automatic control
Required Installation Space : 2,500(W)mm * 2,000(D)mm * 2,000(H)mm, including maintenance space
* Please send your inquiry to vac-tec@vac-tec.co.kr if you need more details
