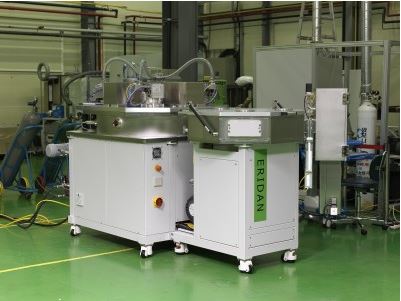

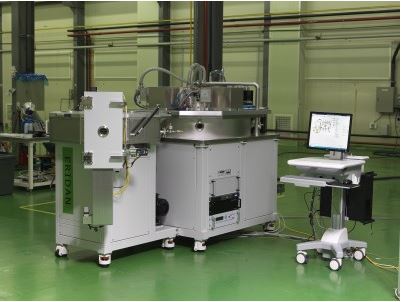

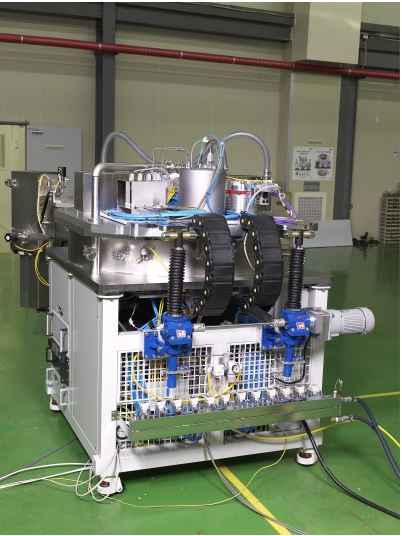

ERIDAN


Concept : Compact magnetron sputtering tool with load lock chamber

- Hardware Specification -
Chamber Size, diameter : 1,300mm
    * Other chamber sizes are available on customer's request
Cartridge Type Load Lock Chamber with Automatic Handling Robot
Magnetron Cathode : Dual rotatble with shutter
    * Dual planer is available on customer's request
    * Number of magnetron chathode is up to customer's request
Sputtering Mode : Reactive, Non-Reactive and Metal mode
Number of Coating Layer : More than 200 layers
RF Plasma Source with shutter
Substrate Holder : Planetary rotation holder
Available Substrate Size : Up to 200mm diameter
Pumping System : Turbo molecular pump with dry pump
    * Cryogenic pump is available on customer's request
Heating Temperature : Up to 350C
Optical Monitoring System : Broad band monitoring
    * Available wavelength range is 220nm~2,200nm
System Control : Fully automatic control

* Please send your inquiry to vac-tec@vac-tec.co.kr if you need more details


a95051976a209fbd8e465a3db5eb4eb8_1742350389_0475.JPGa95051976a209fbd8e465a3db5eb4eb8_1742350389_0789.JPGa95051976a209fbd8e465a3db5eb4eb8_1742350389_1045.JPG
