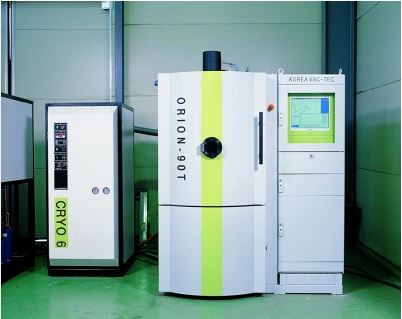

ORION-90
Concept : Batch Type Vacuum Evaporation System
Batch Capacity : Approx. 84pcs of 70mm diameter lens
Process Time : Approx. 30mins, depends on process and conditions
Available Coating Process : Anti-Reflection, Anti-Static, Reflection(Mirror) and etc.
* hydro- and super hydro phobic top coat are available
- Hardware Specfication -
Chamber Size : 900mm diameter
E-beam Evaporatin Source : 6 pockets of 15cc each
Ion Beam Source : End-hall type with hot cathode
Thermal Evaporation Source : Boat

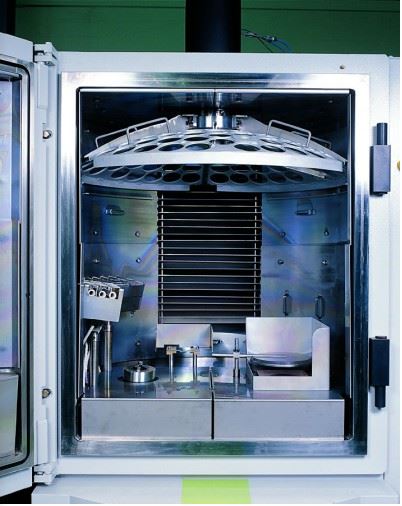

Lens Holder : Dome type single rotation holder, divided into 3 segments
Vacuum Pump : Turbo molecular pump with rotary vane pump
* Oil diffusion pump is available on customer's request
Water Vapor Pump : CRYO-6 with cold trap
Heating Temperature : Up to 150C
Thickness Monitoring : Quartz single sensor head
Process Gas : Argon and oxygen, supplied through mass flow controller
* Other gases are available on customer's request
System Control : Fully automatic control
Required Installation Space : 4,500(W)mm * 3,500(D)mm * 2,800(H)mm, including maintenance space
* Please send your inquiry to vac-tec@vac-tec.co.kr if you need more details
